Audio Distribution - DSP Presets

Habitech have re created the Sonance DSP curves for a range of products which can be downloaded from the links below

Invisible Presets

VP Presets

VX Presets

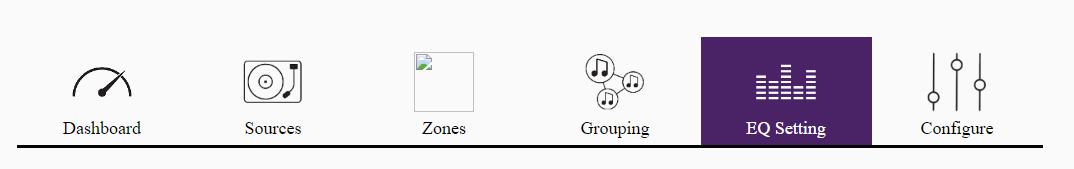

To import a preset, please select and download the DSP preset you require. Once downloaded access the AD Matrix on its IP address and go across to "EQ Setting"

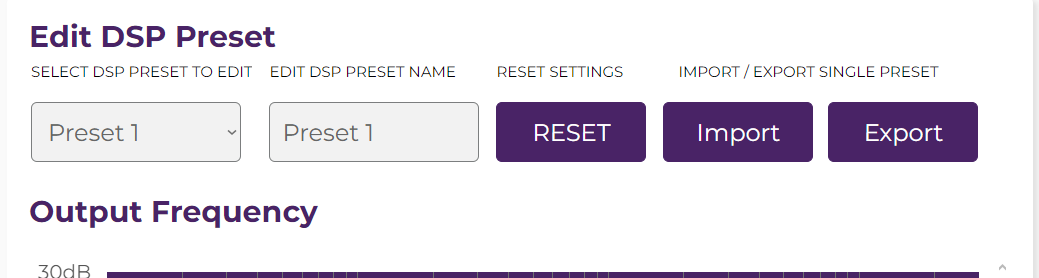

Scroll down to "Edit DSP Preset" and select the preset you wish to override - it will default to the Preset 1

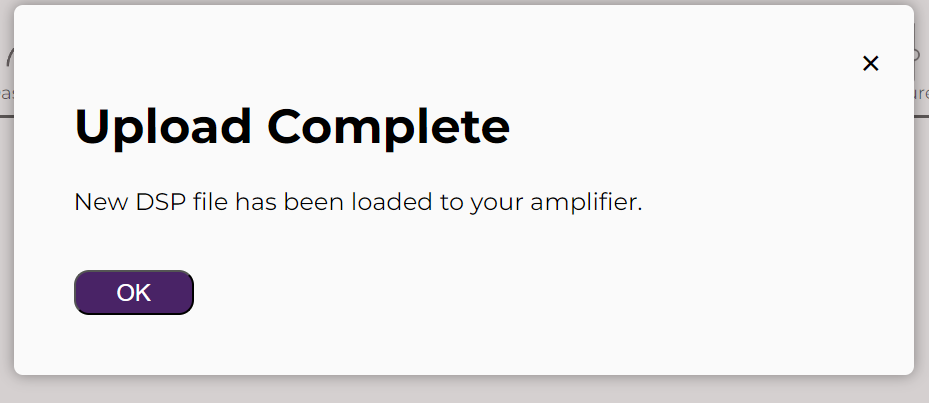

Select Import and then select the file that you have just downloaded to import, after a second or two you will get a Upload Complete popup

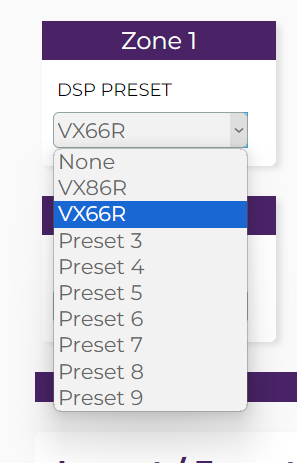

Press OK, you can then select the preset for the zone on that same page
